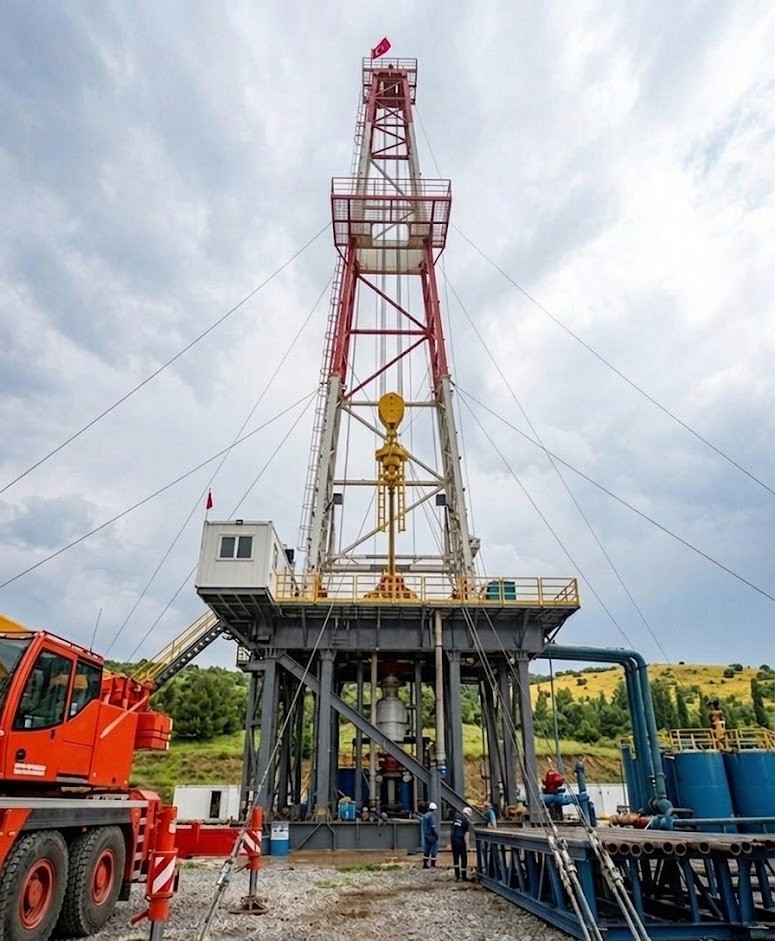

Rig-12

ZJ-50

Technical Overview

Rating

1500 Hp

Hook Load

1.000.000 lbs, 12 Lines

Drilling Depth (Theoretical)

5000 meters

Production Date

2020

Inspection Date

2020

Mast

Type

JJ315/45-K

Height

51 meters from ground level

Substructure

Type

JJ315/45-K

Height

7.5 meters from ground level

Set-back Load

475 tons

Casing Load

315 tons

Top Drive

Type

DQ500Z

Capacity

500 tons

Power Output

800 hp

Torque

7400 daN.m

Maximum Speed

220 rpm

Rotary Table

Type

ZP275 – 27 ½”

Capacity

450 tons

Drive Group

Engine Type

G12V190PZL-3/O, 810 KW x3

Top Drive Engine Type

Mud Pump Engine Type

Generator Type

Mud System

Mud Pump Type

F-1300 x 2

Standpipe Pressure

5000 psi

Mud Tanks

4 Mud tanks, 1 Water tanks

Total Tank Volume

250 m3

Mud Cleaner

Shaker NZS-Z2 x 2 D-Sander x 1 , 2 x 10” D-Silter x 1 , 12 x 4”

Well Control System

Annular BOP

21 ¼” 2000 psi 13 5/8” 10000 psi

Double Ram BOP

13 5/8” 10000 psi

Accumulator Unit

422 gal, 20 bottles
